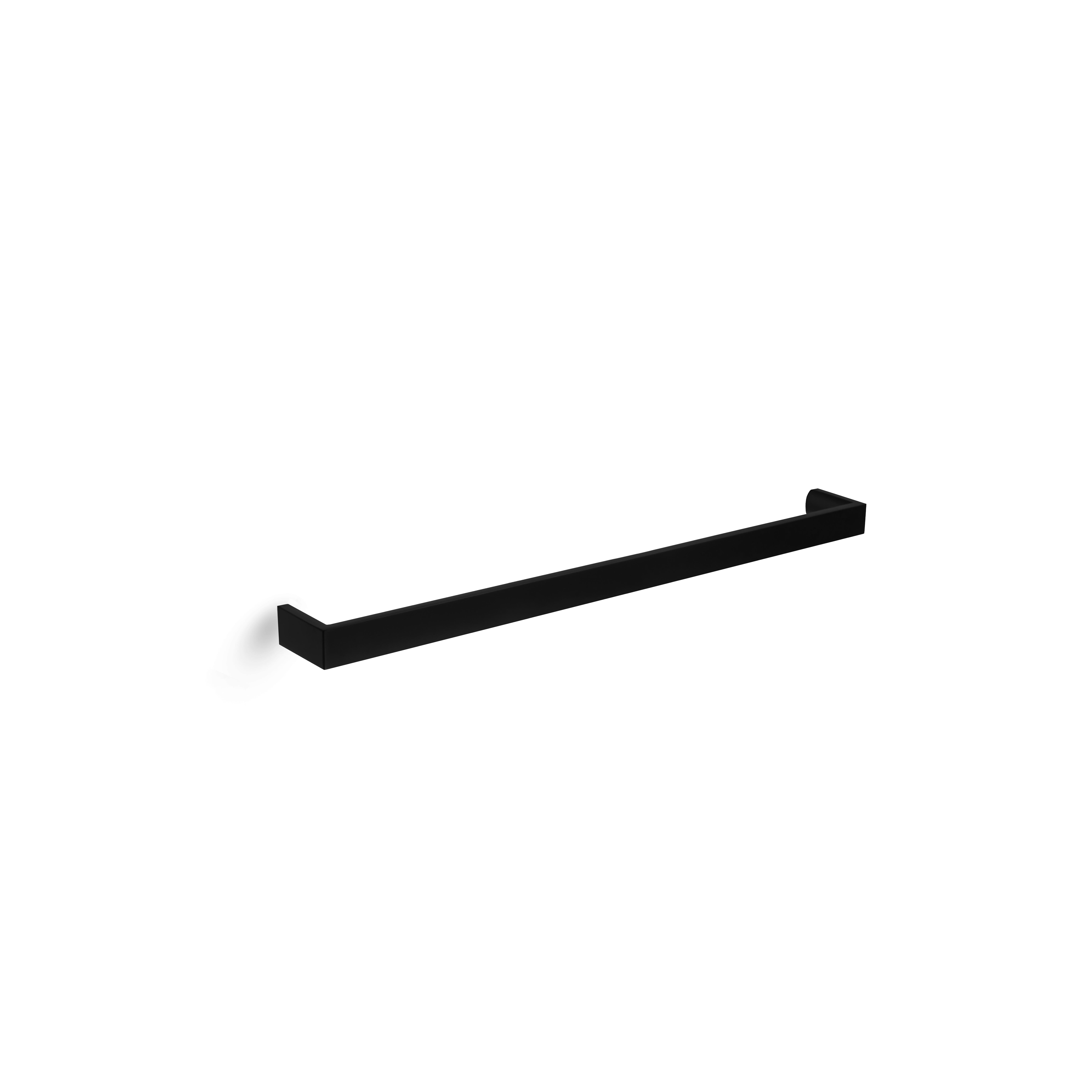

I-shaped Handle – Thru Bolt (TB) Mounting
This page lists JWL’s single-sided thru-bolt handles: the I, J and L profiles in 18 1/2″, 24 1/2″ and 30 1/2″ lengths, the 3″ U handle and the single door pull, all hand-welded solid 304 stainless steel with a 1″ x 1/2″ D bar, projecting 2″ (51 mm), secured from behind with M5 bolts and profile-matched washers. They are used on panel-ready fridge, freezer and dishwasher panels, closet, pantry and swing doors. Designed and assembled in Vancouver, BC.
To see specifications, pricing, finish options and downloads, select the PULL button below.

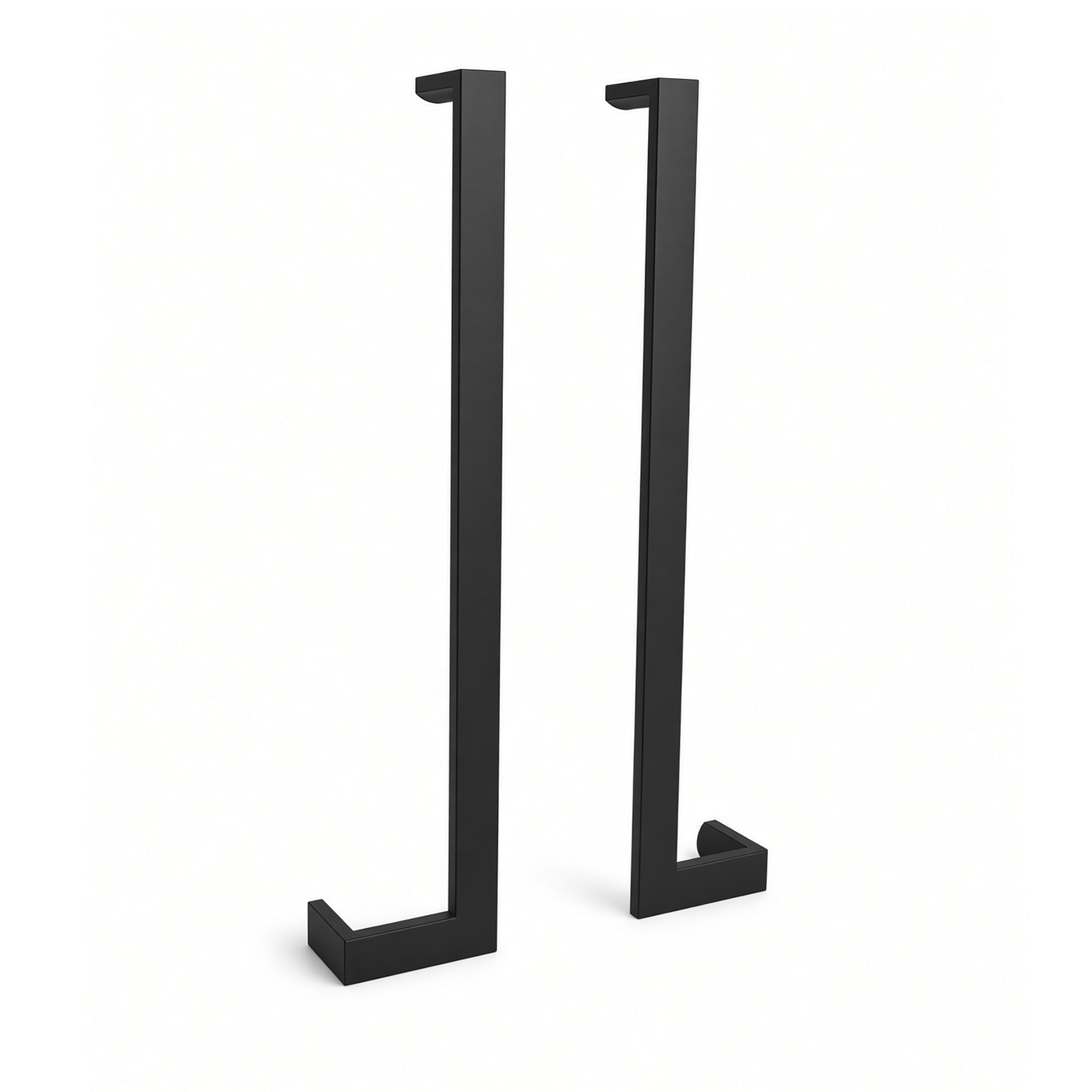

J & L Shaped Handles – Thru Bolt (TB) Mounting
The J and L are mirror images of one another: the same bar with squared ends, the return running the opposite way. Pair them for French door fridge / freezer combinations, or use either on its own. Handles can be mounted vertically or horizontally. Other typical uses range from millwork appliance doors, closet and pantry doors or on any swing or sliding door that requires a quality built handle.
The handle is secured in place by M5 screws and washers. The back washer takes the same profile shape as the handle giving a higher level of fit and finish. It is a subtle detail that’s noticed when an opened door exposes the mounting hardware at the back. An optional larger profiled escutcheon backplate is provided with each handle for a more classic looking installation. Included with each handle are mounting hardware screw lengths that accommodate a door thickness ranging from 3/4″ to 2 1/4″ (19–57 mm).
To see specifications, pricing, finish options and downloads, select the PULL button below.
Single Door Pull – Thru Bolt (TB) Mounting
Pure and simple, a clean lined face with a curved inner profile and finger notch at the back of the pull for a comfort grip. Other typical uses range from millwork cabinet and pantry doors or on any smaller swing or sliding door that requires a quality built pull.
The pull is secured in place by a M5 screw and washer. The back washer takes the same profile shape as the pull giving a higher level of fit and finish. It is a subtle detail that’s noticed when an opened door exposes the mounting hardware at the back. An optional larger profiled escutcheon backplate is provided with each pull for a more classic looking installation. Included with each pull are mounting hardware screw lengths that accommodate a door thickness ranging from 3/4″ to 2 1/4″ (19–57 mm).
To see specifications, pricing, finish options and downloads, select the PULL button below.
U-shaped Handle – Thru Bolt (TB) Mounting
Handles can be mounted vertically or horizontally. Typical uses range from millwork cabinet or appliance doors, closet and pantry doors or on any swing or sliding door that requires a quality built handle.
The handle is secured in place by M5 screws and washers. The back washer takes the same profile shape as the handle giving a higher level of fit and finish. It is a subtle detail that’s noticed when an opened door exposes the mounting hardware at the back. An optional larger profiled escutcheon backplate is provided with each handle for a more classic looking installation. Included with each handle are mounting hardware screw lengths that accommodate a door thickness ranging from 3/4″ to 2 1/4″ (19–57 mm).
To see specifications, pricing, finish options and downloads, select the PULL button below.
Buying guide
How to choose
- Panel-ready fridges and freezers: I, J or L at 24 1/2″ or 30 1/2″; pair J with L on French-door fridges
- Dishwashers, drawer freezers and pantry doors: 18 1/2″ handle or the 3″ U handle
- Closets and light doors: the single pull knob
- Door or panel thickness 3/4″–2 1/4″ (19–57 mm) is covered by the included bolts
- Optional escutcheon backplate for a larger footprint; five finishes match JWL cabinet pulls
Compare the products on this page
| Product | Mount | Projection | Sizes | Page |
|---|---|---|---|---|
| I Shape Door Handle – Thru-Bolt | Thru-bolt, M5 | 2″ (51 mm) | 18 1/2″, 24 1/2″, 30 1/2″ | View |
| J or L Shape Door Handle – Thru-Bolt | Thru-bolt, M5 | 2″ (51 mm) | 18 1/2″, 24 1/2″, 30 1/2″ | View |
| U Shape 3″ Door Handle – Thru-Bolt | Thru-bolt, M5 | 2″ (51 mm) | 3″ | View |
| Single Door Pull – Thru-Bolt | Thru-bolt, M5 | 2″ (51 mm) | Single size | View |
Frequently asked
Do thru-bolt handles fit panel-ready appliances from Sub-Zero, Thermador, Miele, Bosch or Fisher & Paykel?
Yes. The handle bolts through the millwork panel fitted to the appliance, so brand does not matter; Sub-Zero, Thermador, Miele, Bosch and Fisher & Paykel panel-ready units all take these handles. Included hardware covers 3/4″–2 1/4″ (19–57 mm) panels and the handle projects 2″ (51 mm) from the panel face.
What door thickness does the included hardware cover?
M5 bolts and profile-matched back washers are supplied for doors and panels from 3/4″ to 2 1/4″ (19–57 mm). The back washer follows the handle’s D profile, so the fixing looks finished when the door is open. Longer bolts for thicker doors can be requested.
How do I choose between I, J and L?
I is straight at both ends and mounts either way up. J and L are mirror images of one another — both squared, with the return on opposite sides. On a French-door fridge, a J on one panel and an L on the other mirror at the center. All three share the same bar, projection and lengths.
Which finishes are available?
All stainless handles and pulls come in five finishes: Brushed, Polished, Matte Black, Satin Brass PVD and White. The same five finishes run across cabinet pulls, appliance handles, door handles and glass door handles, so one finish can be carried through a kitchen, bathroom and closet without mixing suppliers.
How fast do orders ship, and what is the warranty?
In-stock orders ship in 1–3 workdays from Vancouver, BC to Canada and the US, with free shipping on orders over $500. Stainless handles carry a limited lifetime residential warranty on materials and workmanship (commercial: 5 yr brushed stainless, 2 yr coated). Full terms are at jwlhome.com/warranty.
What’s on this page
Five PULL buttons (I-TB, J-TB, L-TB, P-TB, U-TB) linking to product pages with pricing by length and finish, hardware and DWG, 3D and PDF downloads. Wood thru-bolt handles, back-to-back and surface-mount alternatives are linked.
