Product details
A solid wood cabinet pull in North American white oak or walnut, thru-front mounted at 160 mm (6 5/16″) center to center and projecting 1 1/8″ (29 mm). Choose the Round profile (1/2″ diameter bar) or the D profile (1/2″ x 1/2″ bar, flat back and rounded face). Same wood, same finishes, same price. Used as cabinet handles and drawer pulls on kitchen cabinets, bath vanities, laundry and closet millwork, and to match JWL’s solid wood door and appliance handles. Made in-house in Vancouver, BC; in-stock finishes ship in 1-3 workdays.
Specifications
| Profile |

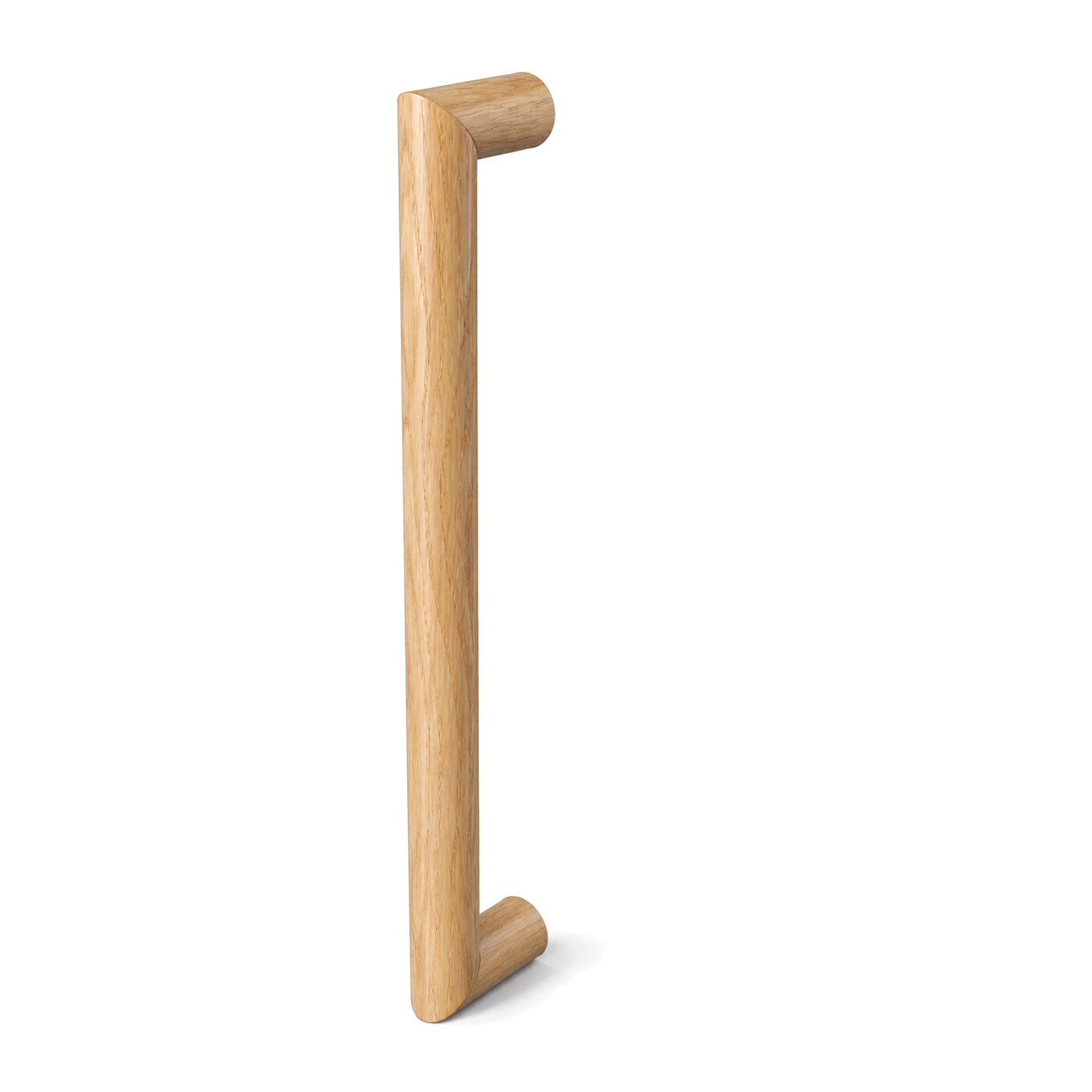

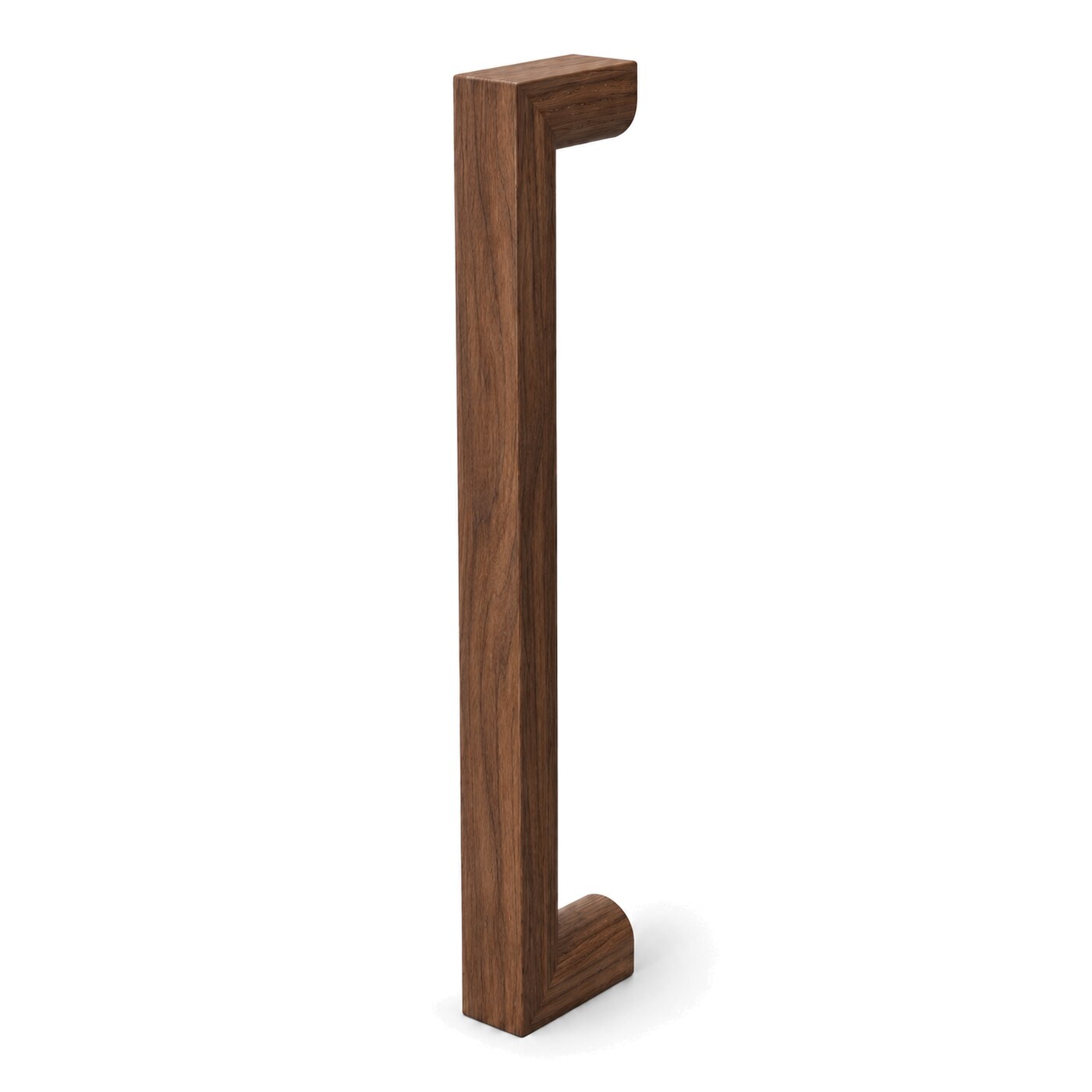

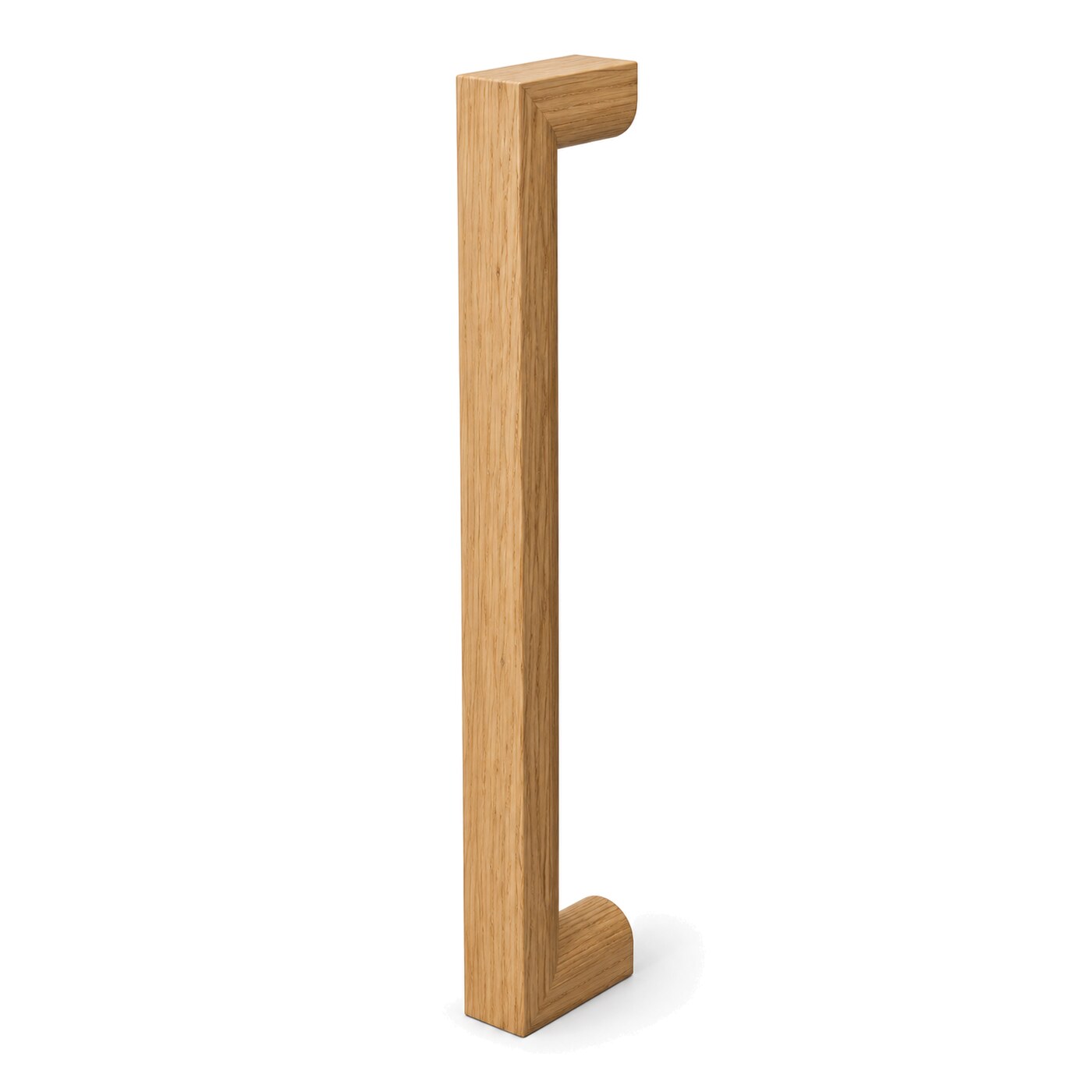

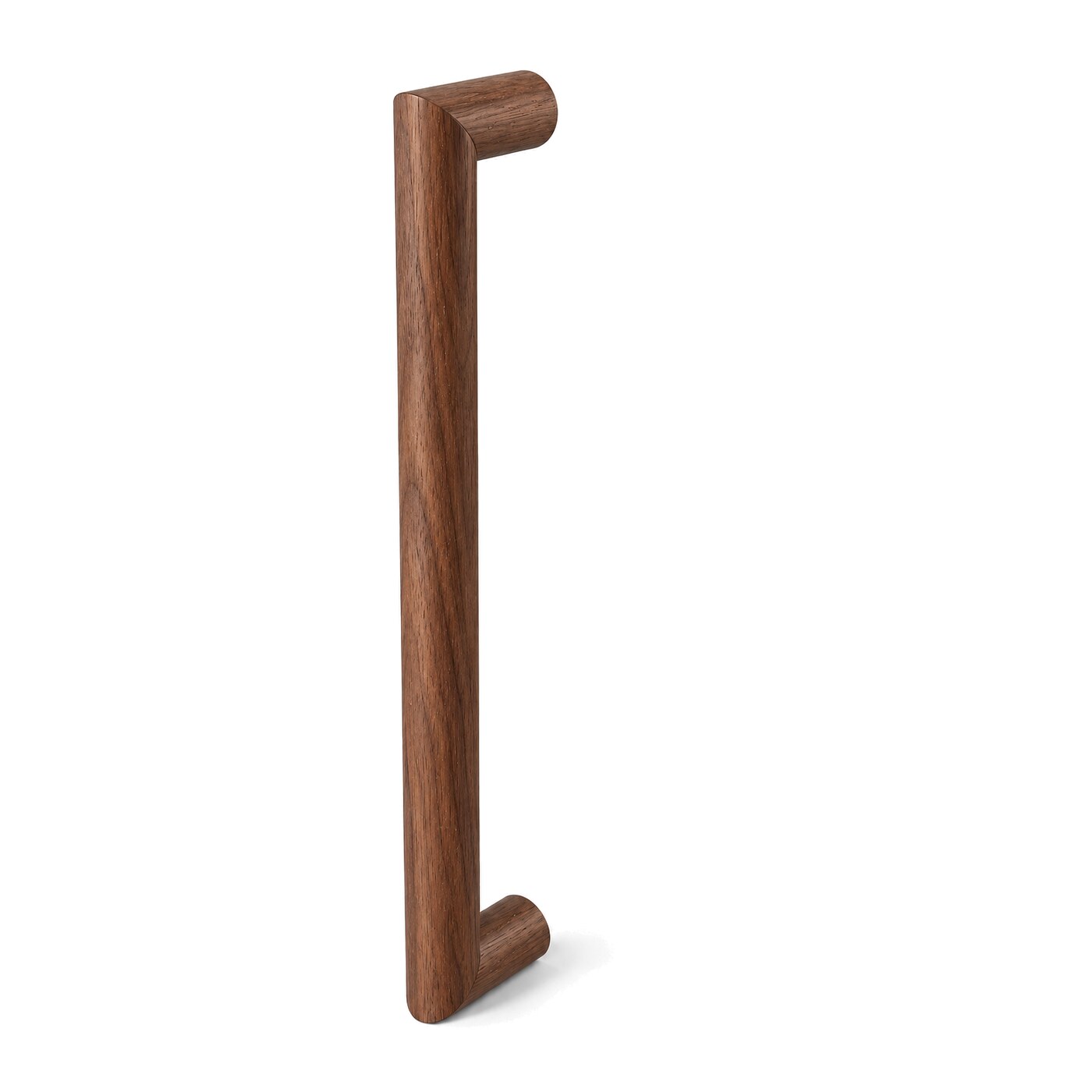

Round (RW160) – 1/2″ DIA bar · D Profile (IW160) – 1/2″ x 1/2″ bar |
| Material |
Solid North American white oak or walnut |
| Center to center |
160 mm (6 5/16″) |
| Overall length |
D Profile 6 11/16″ (171 mm) · Round 6 13/16″ (173 mm) |
| Projection (from door face) |
1 1/8″ (29 mm) |
| Mount |
Thru-front, 2 holes; 2 x 8-32 break-off screws included (standard 160 mm cabinet drilling) |
| Door thickness |
Standard drawer and door fronts; included 8-32 screws break to length |
| Wood finishes |

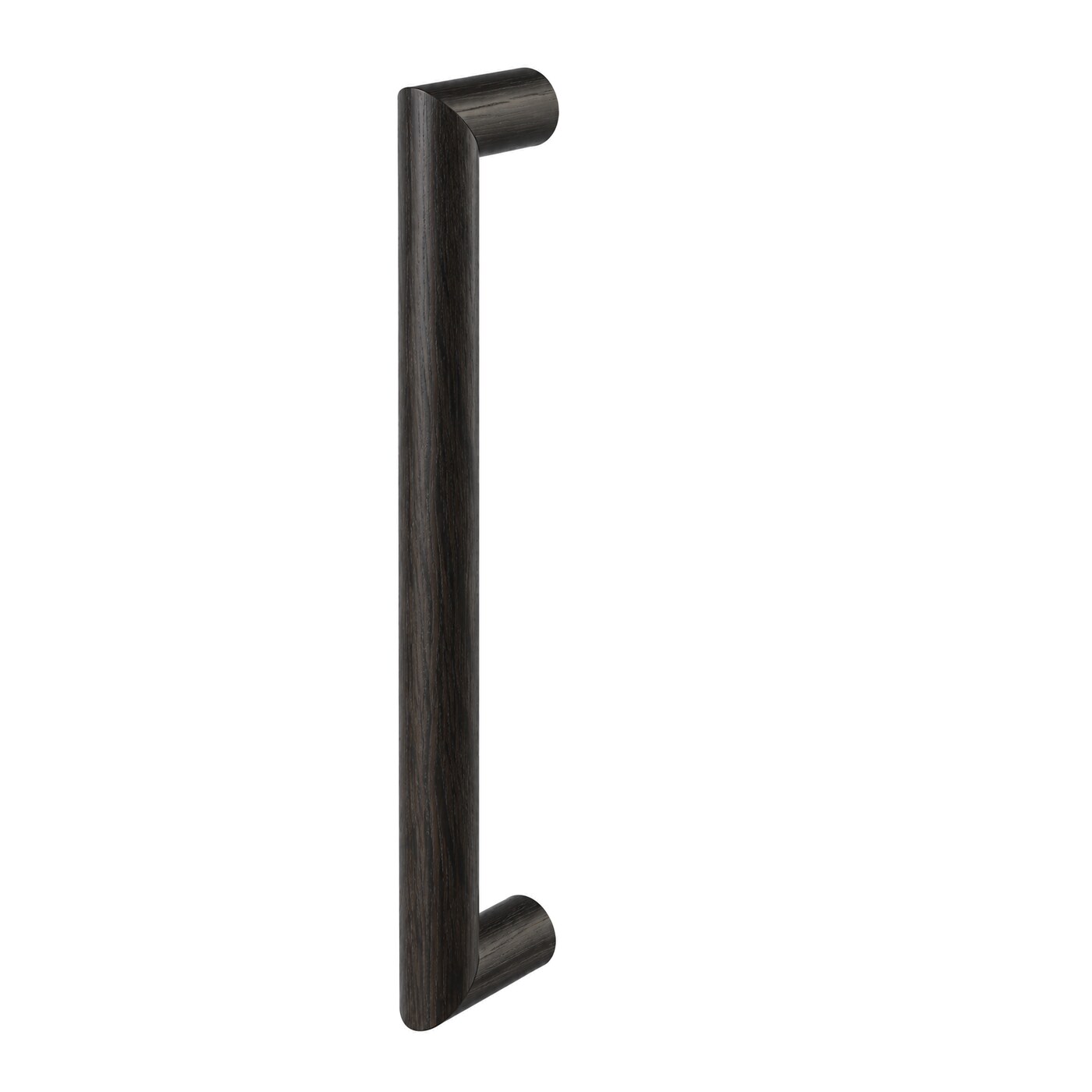

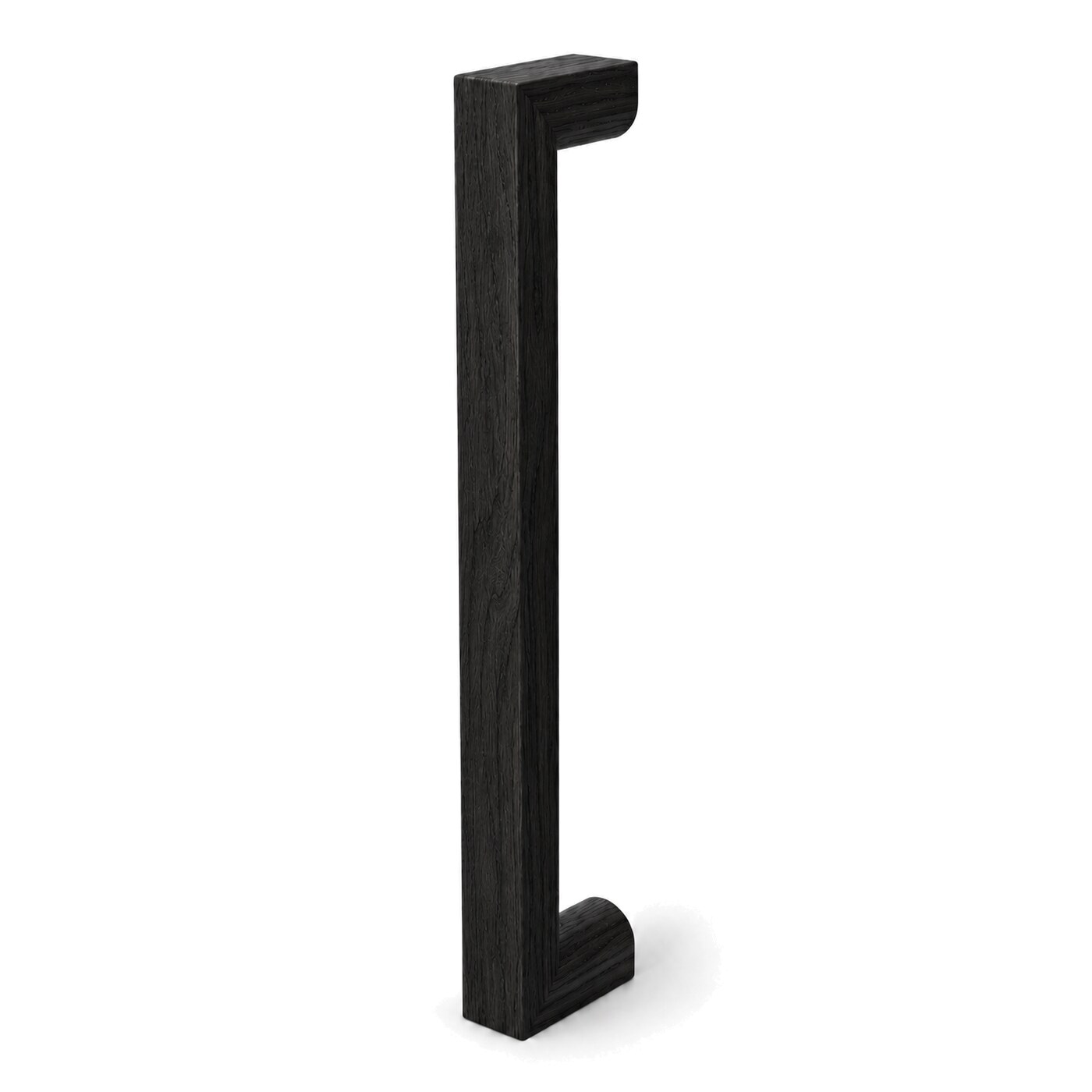

Oak: Clear · Uncoated · Black | Walnut: Clear · Uncoated |
| Applications |
Kitchen cabinets and drawers, bath vanities, laundry and closet millwork |
| Origin |
Made in-house in Vancouver, BC, Canada |
| Lead time |
Clear and Uncoated ship in 1-3 workdays from Vancouver, BC; Black is made to order, allow 5 additional business days. Free shipping on orders over $500; ships to Canada and US |
| Warranty |
Limited lifetime residential warranty on materials and workmanship; 1 year commercial. Full terms: jwlhome.com/warranty |
| Downloads |
Spec sheet (PDF) · CAD (.dwg) · 3D model (.skp) — see above |
Round or D profile?
Both profiles are the same price and share the same 160 mm spacing; they differ in section only. The D profile has a flat back with a rounded face and reads as a crisp bar on flat-panel fronts. The Round profile is a 1/2″ diameter dowel, softer in the hand and in the shadow line. Both match the sections used on JWL’s Round (RW) and D (IW) wood door handles, so one profile can run from cabinets to appliance panels and doors.
Finish guidance
Clear-finish oak and walnut arrive sealed and ready to install; uncoated pulls arrive raw, sanded to 320 grit, for site-finishing to match millwork. Black is a stained oak with a flat clear topcoat. Grain and colour vary from piece to piece; order one finish name across a whole kitchen and the pulls will read as a set.
Frequently asked
Will this pull fit holes drilled for another brand?
Yes, if the existing holes are 160 mm (6 5/16″) apart – the most common metric standard for cabinet pulls. Measure centre to centre before ordering; the 8-32 screws fit standard 3/16″ (4.5–5 mm) holes.
Does the wood match JWL’s wood door and appliance handles?
Yes. The pulls are cut from the same white oak and walnut stock, in the same Clear, Uncoated and Black (oak) finishes, as the ‘IW’ and ‘RW’ wood door and appliance handles, so cabinets, appliance panels and doors can be specified in one wood and finish.
Which screws are included, and what if my front is thick?
Two 8-32 break-off screws are included and snap to length for standard 5/8″ to 1″ fronts. For thicker drawer fronts or applied panels, request longer 8-32 screws at checkout or by email.
What is the lead time, and what warranty applies?
Clear and Uncoated pulls ship in 1-3 workdays from Vancouver, BC, to Canada and the US, with free shipping on orders over $500. Black is made to order – allow 5 additional business days. JWL wood pulls carry a limited lifetime residential warranty on materials and workmanship; commercial use is covered 1 year. Full terms at jwlhome.com/warranty.
Reviews
There are no reviews yet.
